10 September 2019
Let’s start with the theory

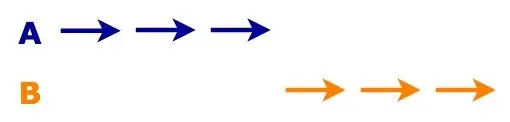

Before I’ll start talking about Node.js, let’s quickly distinguish two terms that might be a little confusing. These are concurrent and parallel concurrency in Node.js. Let’s imagine that you have two operations: A and B. If you weren’t dealing with any concurrency at all, you would start with the operation A. Once it’s completed, you would start the operation B, so they would simply run sequentially. Such execution will look like the one on the diagram below.
Once operation A is completed, you start the operation B – they are run sequentially.

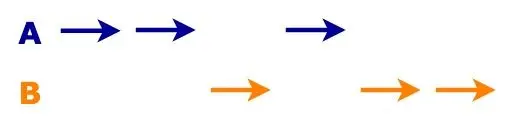

If you want to handle these operations concurrently, the execution will look like this.
The alternative solution is to handle the operations concurrently.
These operations don’t run sequentially, but neither are they executed simultaneously. Instead, the process “jumps” or switches context between them.
You can also execute these operations in parallel. Then, they run simultaneously on two separate CPUs. In theory, they can be started and finished at the same time.
The third option is to run the operations in parallel.
One thread to rule them all
Node took a slightly different approach to handling multiple concurrent requests at the same time if you compare it to some other popular servers like Apache. Spawning a new thread for each request is expensive. Also, threads are doing nothing when awaiting other operations’ result (i.e.: database read). That’s why Node is using one thread instead. Such an approach has numerous advantages. No overhead comes with creating new threads. Also, your code is much easier to reason about, as you don’t have to worry about what will happen if two threads access the same variable. It’s because that simply cannot happen. There are some drawbacks as well. Node isn’t the best choice for applications that mostly deal with CPU intensive computing. On the other hand, it excels at handling multiple I/O requests. So, let’s focus on this part for a bit.
I/O operations and Node
Firstly, I should answer the question: what do you mean by I/O operations? These are operations that communicate with stuff from the outside of your application. It means HTTP requests, disk reads and writes or database operations, just to name a few. I/O in Node comes in two “flavors”: blocking and non-blocking. It’s quite important to distinguish these two. “Blocking” in “blocking I/O operations” is quite self-descriptive. It means that next operations are blocked and that they have to wait as long as the currently running operation is taking. Let’s take a look at the example.
In the example, you trigger the first read and then, only after it’s finished you start the second one. console.log will happen once both reads are completed.
The non-blocking model works in a pretty different way. Let’s take a look at an example once again.
Here, the first read operation is triggered, but the code is not stopped. You also trigger the second read and right after that – console.log writes to the console. What about the results of the two read operations? Well, they will be handled asynchronously. It means that you’ll receive their results in the future, and you have no guarantee which operation finishes first.
Need support with top-class Node.js programming?
💚 Find out what you can achieve with Poland’s biggest Node team that builds performance-driven apps for millions of users.
Which one should you prefer?
Instead of giving the answer, let’s conduct an experiment. Let’s use Express and create a very simple HTTP server with two endpoints. First one reads some data from the file asynchronously (non-blocking I/O) and the other reads them synchronously (blocking I/O). Let’s assume that you wrapped standard readFile and readFileSync methods with some magic, so they take an extra 75 ms to finish. It will look like this.
If you want to compare the performance of these two endpoints you could use one of the available benchmarking tools (let’s say – you’re interested in how many requests you can handle within 5 seconds and up to 10 requests are concurrent). I chose Apache Benchmark. It’s been there for quite some time, but it’s built into macOS. It’s doing its job just fine. Let’s run the following benchmark, first for the synchronous/blocking endpoint.

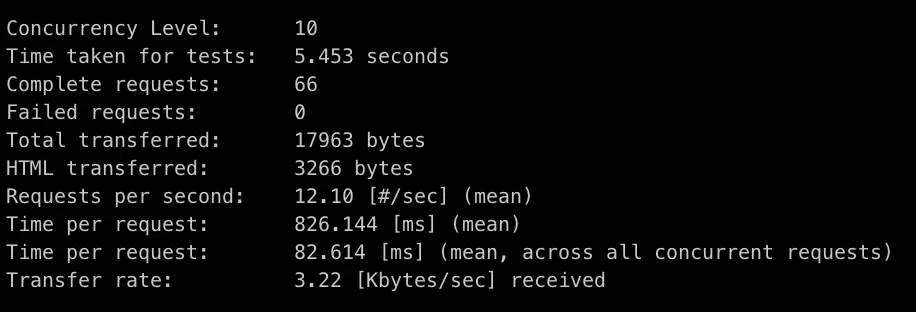

The benchmarking tool will give you plenty of interesting statistics, but let’s focus on how many requests you can handle per second.
As you can see – you’re capable of handling about 12.1 requests per second, which makes sense. You’re only able to handle one request at the time, it takes about 80ms (75 of your “extra” read time, plus a few milliseconds to read the file and handle the request). So, you can easily calculate how many requests per seconds you can handle. It’s 1000 ms (1 second) / 80 ms = 12.5 request per second, so you’re quite close.

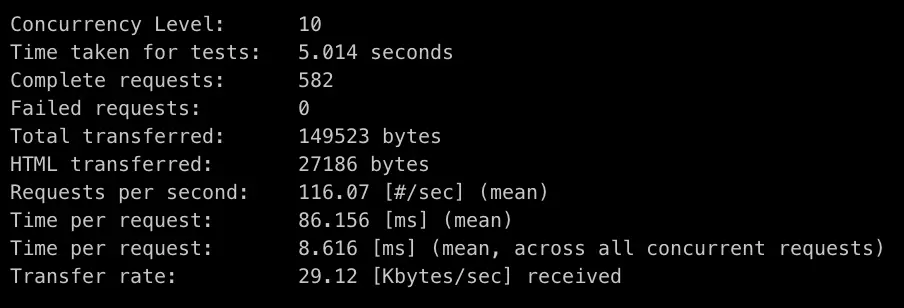

Now, let’s take a look at the benchmark for the asynchronous/non-blocking endpoint below.
You can see that the result is much better in this example. You can handle over nine times more results per second than in the blocking version (and the difference would be more significant for longer read times). So it should be clear which version you should favor.
Highlight: Always favor non-blocking I/O over blocking I/O.
See also: Swoole: Is it Node in PHP?
Let’s briefly explain what Event Loop is and how it works. Previously, I’ve mentioned that you need some kind of “manager” to be able to handle asynchronous operations. That’s precisely what Event Loop does. Let’s take a look at an example of an asynchronous operation.
The interesting part here is a function that you pass as the last argument. It’s a callback function that will be called once your operation is finished, but not immediately. We agreed that such things shouldn’t happen anytime and Event Loop will make sure of that. Once your operation is finished, instead of calling the callback right away, it will place it into a special queue. Once it’s possible to handle it safely, your callbacks will be pushed to the stack and then executed one by one. You should be careful here, even if your I/O operation was asynchronous, the callback will be handled on the main thread, assuming it’s a JS operation. So, if you’re doing something time consuming, you’ll be blocking the Event Loop.
This is, of course, a great simplification of how Event Loop works. If you’d like to learn more about it – this video is a great introduction.
This series in the Insider Attack blog explains it much deeper.
What about non I/O operations?
Okay, so I covered a piece of information about a great deal with the use of blocking and non-blocking I/O. You saw that Node deals quite well with the latter and now you know how to do it. Event Loop for the win! What about the stuff that doesn’t deal with I/O, but may process some heavy computing for you? For example – sorting a huge list. Unfortunately, this is where Node single-threaded environment won’t shine that bright. Let’s jump back into our example with Express API. You saw that Node deals quite well with handling requests to your asynchronous endpoint. What would happen if the same API exposed a new endpoint which did some heavy computing that takes a few seconds?

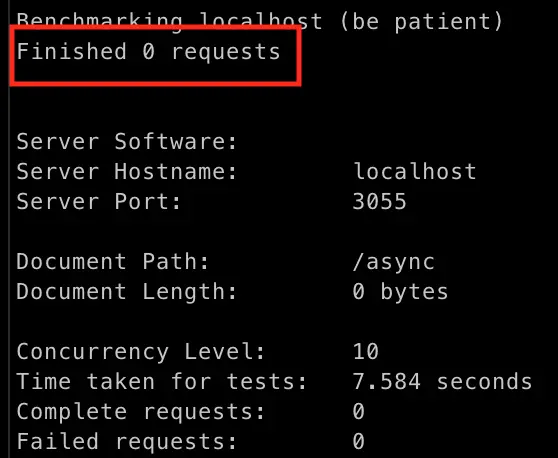

Now, let’s imagine a scenario where this endpoint is being used by some batch job to process some data. In such a scenario, you’re not even doing any concurrent requests. Instead, you’re making sure that your server is constantly spinning and doing some job for you. What would happen if you’d run some benchmarks on your old asynchronous endpoint (let’s name it /async), while your CPU intensive task is constantly running? Let’s see.
Yup, you’re right. Your API is pretty much unresponsive at the moment. If you’re unaware of the limits of Node’s single thread, then unfortunately, you can achieve such unresponsiveness pretty easily. Is there anything you can do to somehow fix this case? One idea that comes to mind is to scale your app. But you don’t need help from the DevOps team to do that. Fortunately, Node has some built-in mechanisms that allow you to achieve it.
The official documentation explains it quite nice, so I won’t be reinventing the wheel and will simply quote it here.
A single instance of Node.js runs in a single thread. To take advantage of multi-core systems, the user will sometimes want to launch a cluster of Node.js processes to handle the load.
So, what Cluster Mode gives you is a very basic load balancer. It will distribute the load in the round-robin approach between the nodes. Sounds pretty nice, doesn’t it? Nowadays, we have fancy CPUs with multiple cores, so it makes sense to take advantage of them. Especially if your application became so hopelessly unresponsive.
Let’s take a look at how this may look.
Nothing too complicated, right? The fact that you don’t have to bother the DevOps team makes it even better! If you’ll run your API, you can see that you indeed spawned some processes.

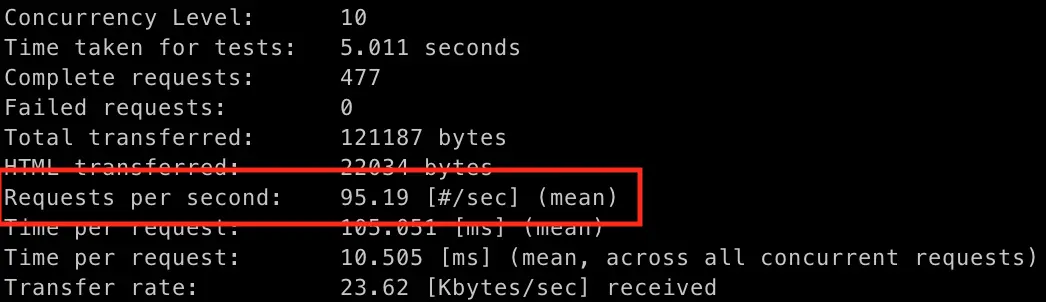

Now, let’s see if this fixed the problem. Your long-running job is opened in the background, your Super Important Algorithm is still doing its job, so let’s run the benchmark again.
Looks good, doesn’t it? But you will probably agree that your CPU intensive endpoint isn’t that busy right now. What if someone decided to speed some things up and run, let’s say, five concurrent jobs (or just any number of jobs that exceeds the number of CPUs on the server) that are consuming this endpoint? You will see the same thing as you did before introducing Cluster Mode. No responses whatsoever. And what would happen if you expose this endpoint to the public, for the whole world to use it? You can see that as nice and easy to use Cluster Mode is, it doesn’t really solve the problem if you’re able to make each process unresponsive so quickly.
Are you doomed then? Well, luckily you are not. Some time ago, one of the Node releases gave us all a nice surprise, namely…
Not too complicated, right? First, you check whether you are on the main thread. If you are, then you spin a new worker thread and handle some basic communication with it. After that, you wrap it all up with a Promise which is quite a useful pattern in Node. It makes working with a callback or event-based code much easier. If you are not on the main thread that means you’re on one of the spawned threads, and that’s where you can run your long-running operation.
Now, you simply have to modify your Express API so it uses this version of the CPU intensive algorithm.
If you run benchmarks again (even with the version which was making concurrent requests to the long-running endpoint) everything should be fine. Your other endpoints are responsive again!
Interested in developing microservices? 🤔 Make sure to check out our State of Microservices 2020 report – based on opinions of 650+ microservice experts!
Few more things to remember
Besides being useful when using experimental Worker Threads, you should also keep in mind that they are not necessarily useful for handling I/O operations. What’s already been built into Node before Worker Threads will work much better. And one last thing – if you take a look at your API which is using threads, you’ll see that you’re spinning a new thread for each request. That won’t be too efficient in the long run. What you should do instead is to have a pool of threads and re-use these. Otherwise, the cost of creating new threads will overcome their benefits.
Only a single thread – a recap
Be aware of the built-in scaling that Cluster Mode gives you, but also be aware that it won’t necessarily solve the problems that come with CPU intensive operations in Node. For these, there’s a much better solution that came quite recently – Worker Threads. Just bear in mind that they’re still experimental, but follow the newest Node releases, as this may change anytime!
